On Low Side Windows

Low Side Windows in English Pre-Reformation Churches: Some Examples.
11


C: Modified openings: A pre-existing chancel window in a suitable location, but too high to function as a confessional.

In this category of low side window a pre-existing window is close to the western end of the chancel, but would have been too high to have functioned as a confessional window. These were modified by creating a low opening below one, or all of the lights of the original window, its sill being used as the lintel of the new opening, or by the addition of a transom. Internally the splay of the original window would be lowered across its whole width (e.g. St Bartholomew's Church Furtho, Northamptonshire, St Mary Magdalene, Wardington, Oxfordshire) or just under one of the lights-invariably the westernmost-(e.g. Holy Trinity Scoulton Norfolk, All Saints, Ladbroke, Warwickshire). This category of low side window was described by F. T. S. Houghton in his survey of Warwickshire churches as "low silled, not transomed", or "low silled, transomed". However, this seems to be an unnecessary complication.

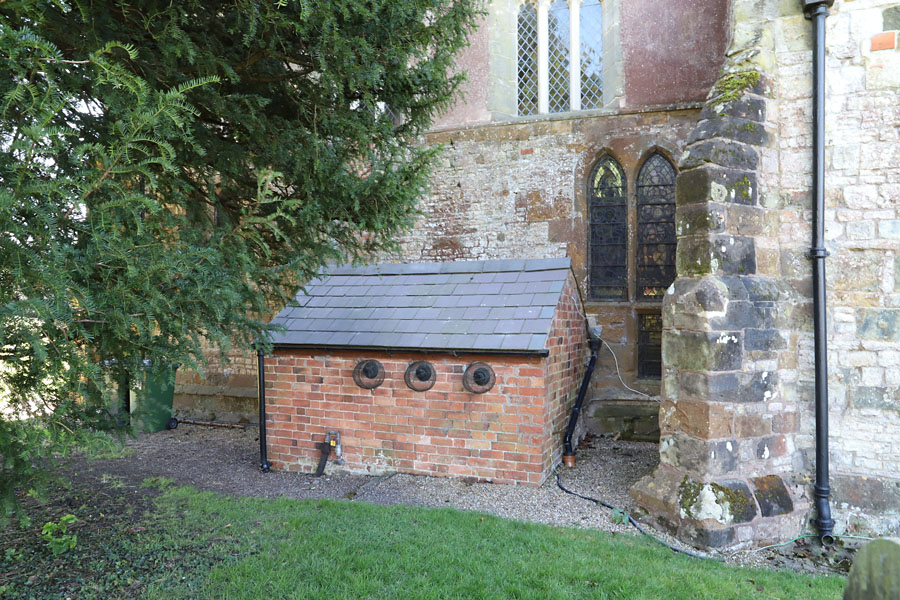

All Saints, Ladbroke, Warwickshire.

North side of chancel. The low side window has been formed below the westernmost light of a two-light lancet pair which is close enough to the western end of the chancel to occupy the traditional position for confession to be heard, but too high. The westernmost lancet has been lowered and its former lintel now acts as a transom.

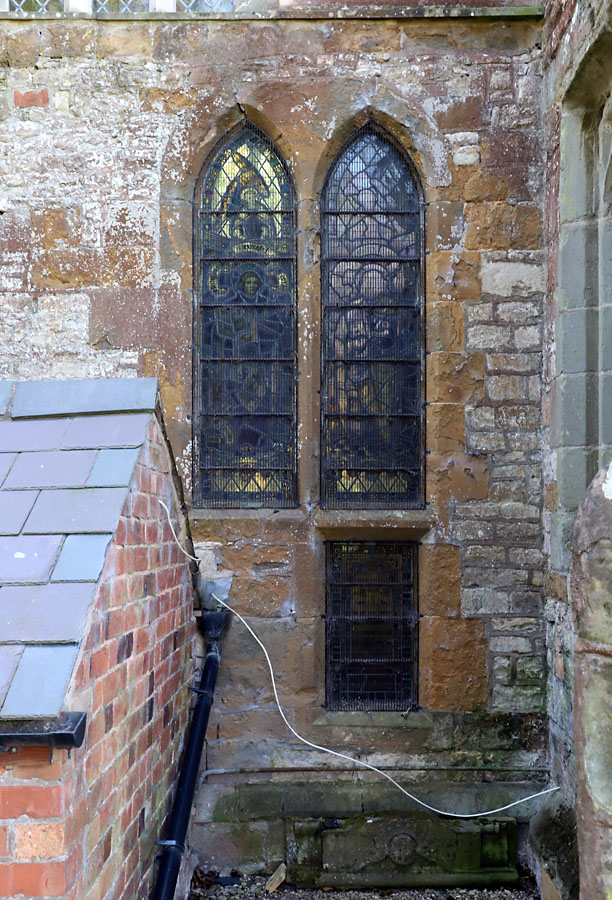

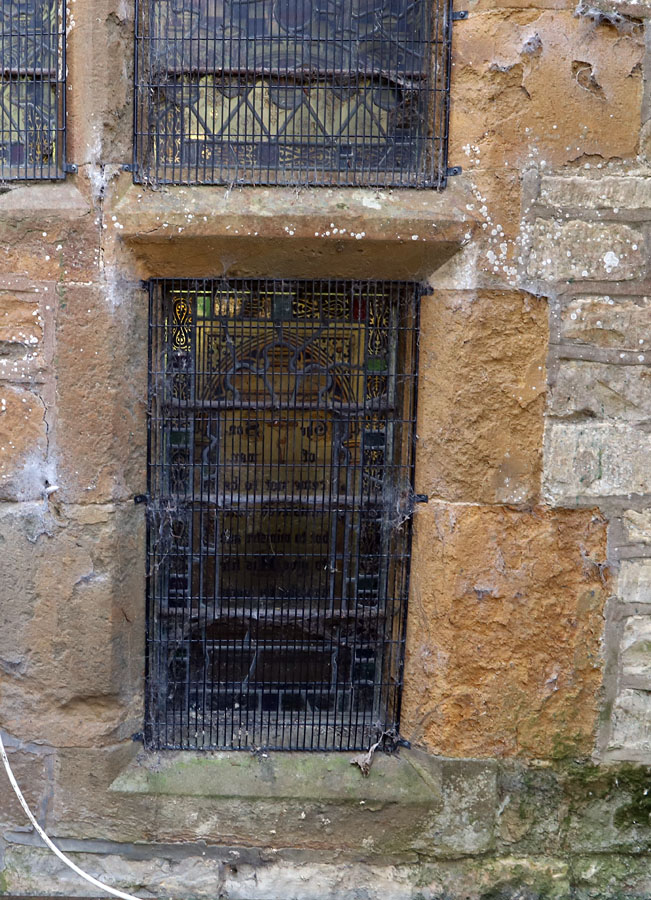

All Saints, Ladbroke, Warwickshire

Detail of north low side window.

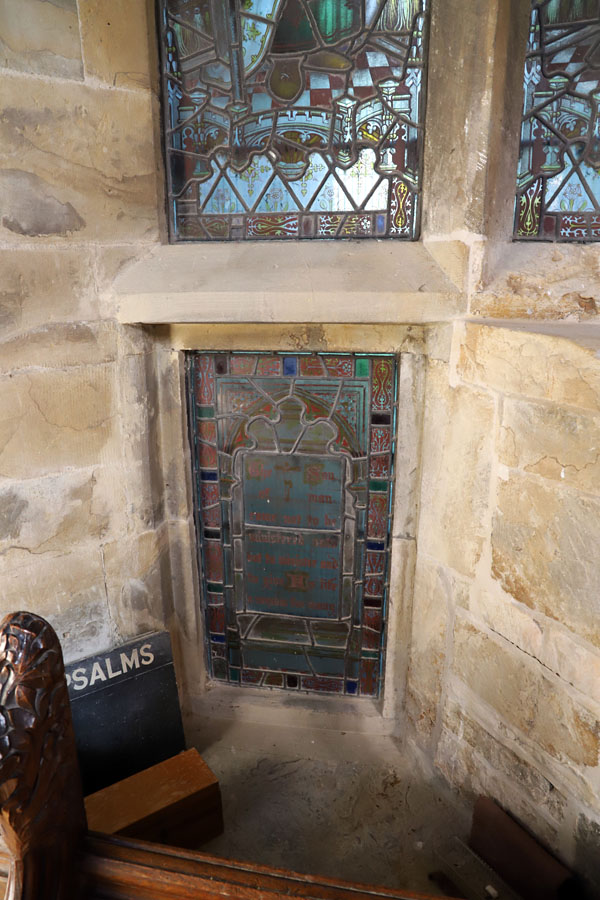

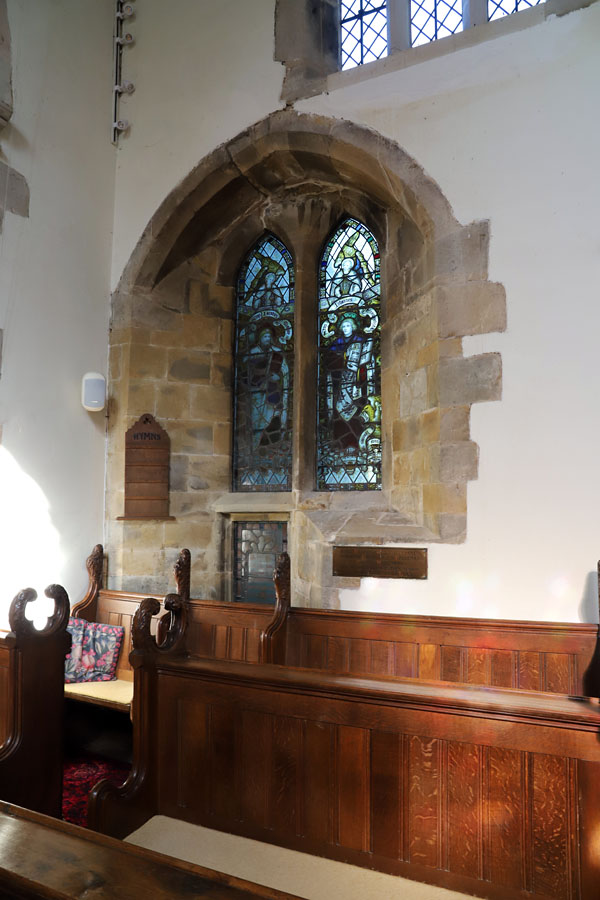

All Saints, Ladbroke, Warwickshire

Internallly the wall under the original westernmost light has been lowered and splayed to provide a seat.

All Saints, Ladbroke, Warwickshire.

Internal detail. Note the recess for a wooden shutter. The transom has clearly been renewed in recent history.

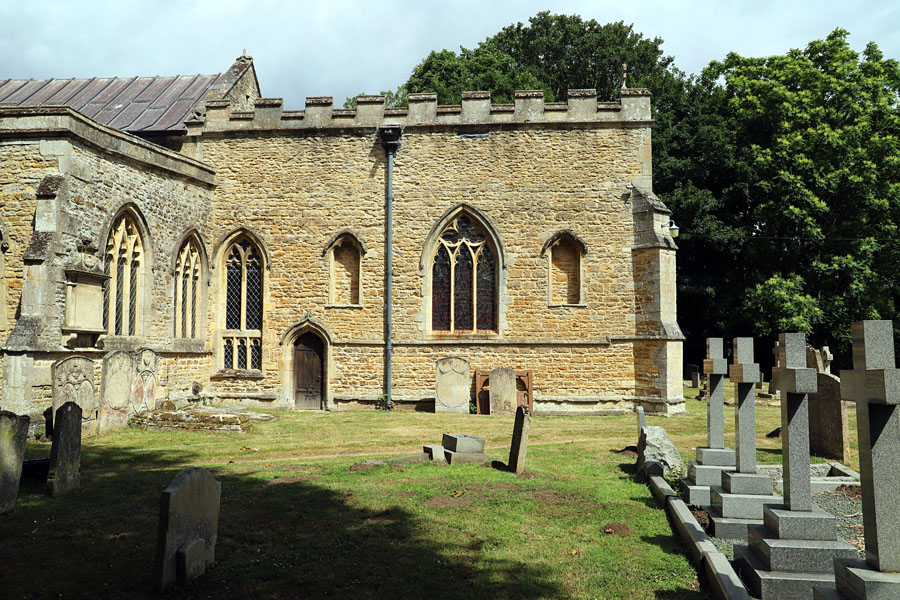

Holy Trinity, Orton Longueville, Northants.

South side of the chancel.

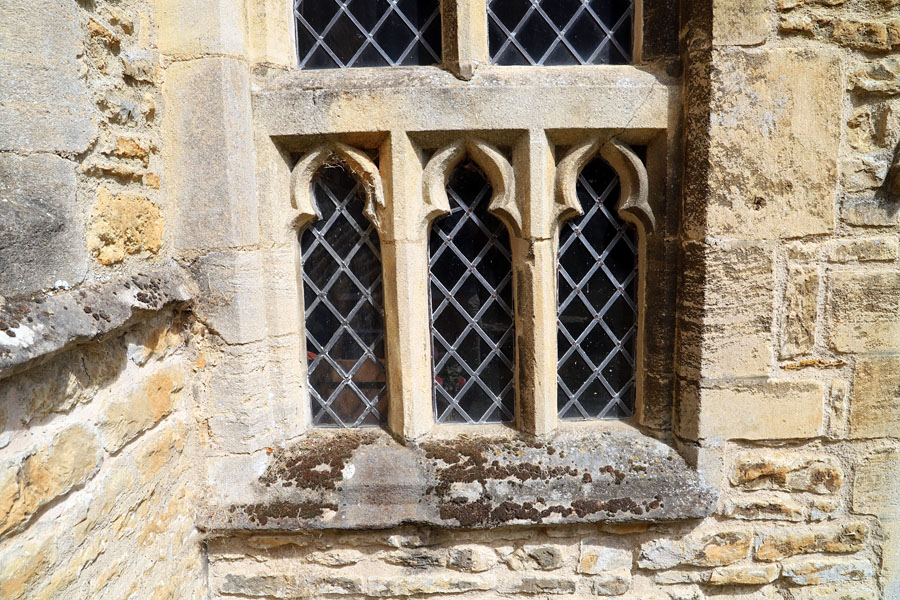

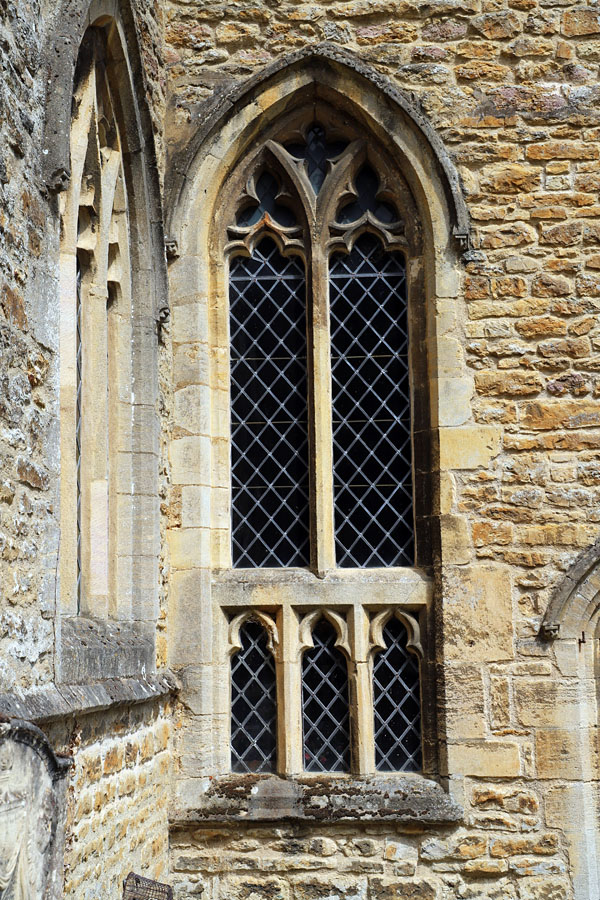

Holy Trinity, Orton Longueville, Northants.

South low side window detail

Holy Trinity, Orton Longueville, Northants.

South low side window detail.

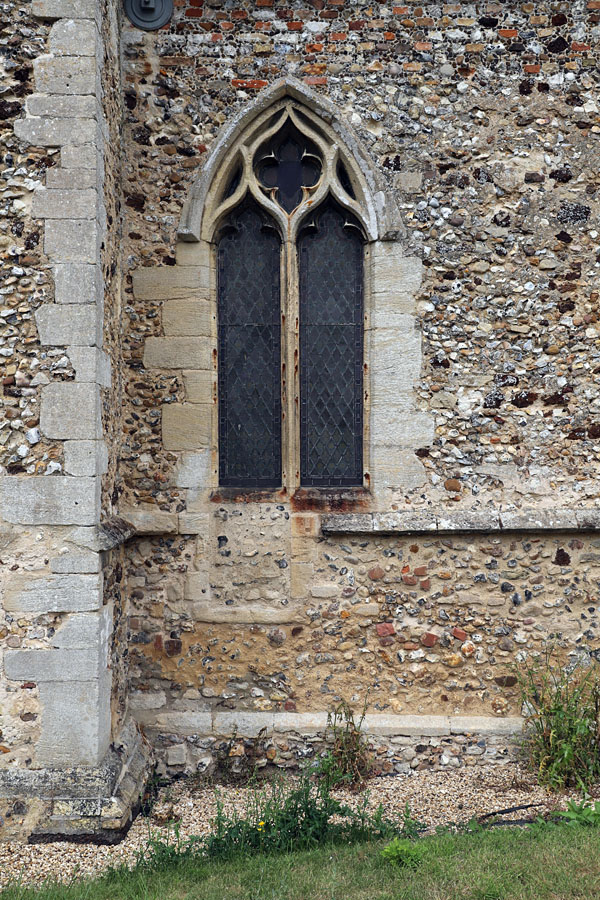

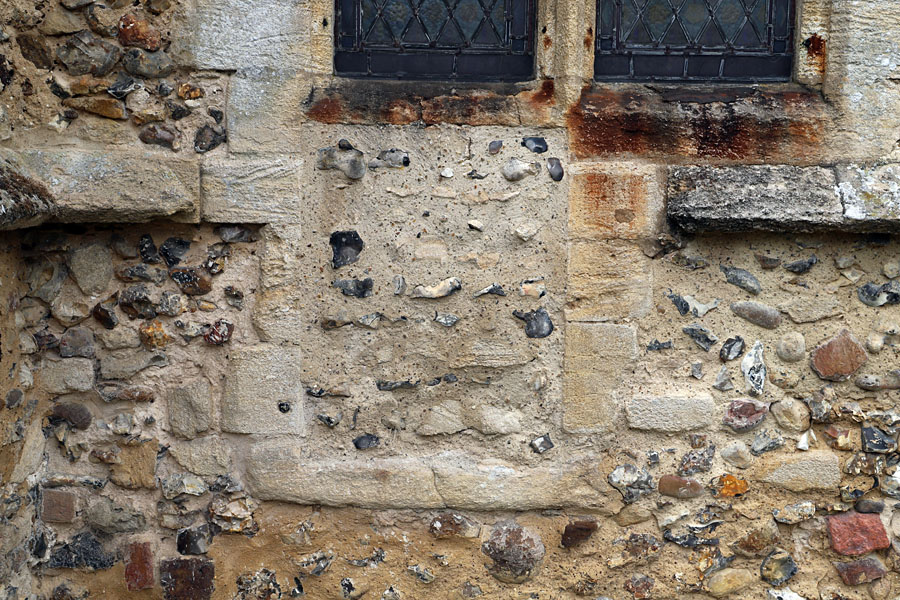

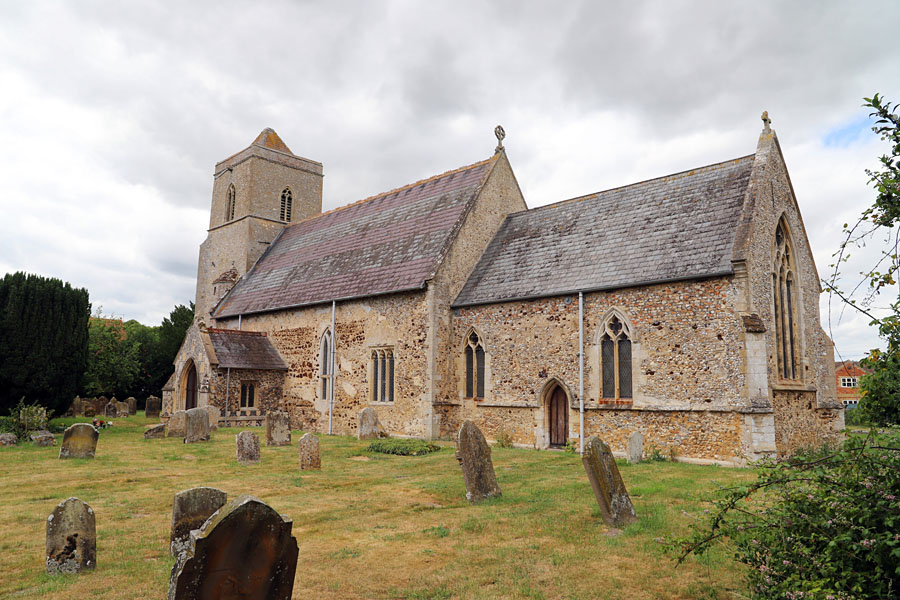

St Andrew, Barton Bendish, Norfolk.

South low side window detail. Note the crudely cut-out string course.

St Andrew, Barton Bendish, Norfolk.

South low side window detail.

St Andrew, Barton Bendish, Norfolk.

Internally there is no trace of the low side window.

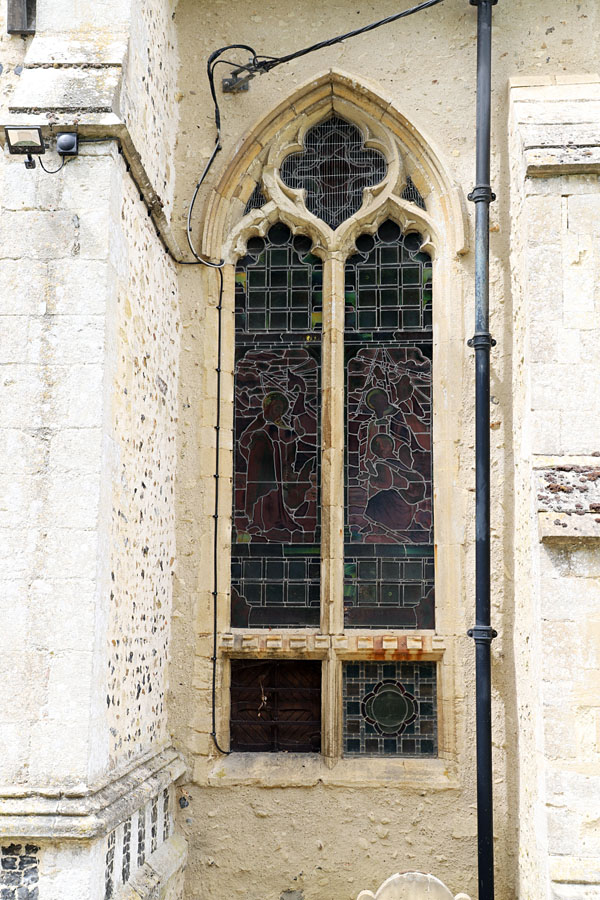

St Andrew's, Barningham Norfolk.
South low side window.

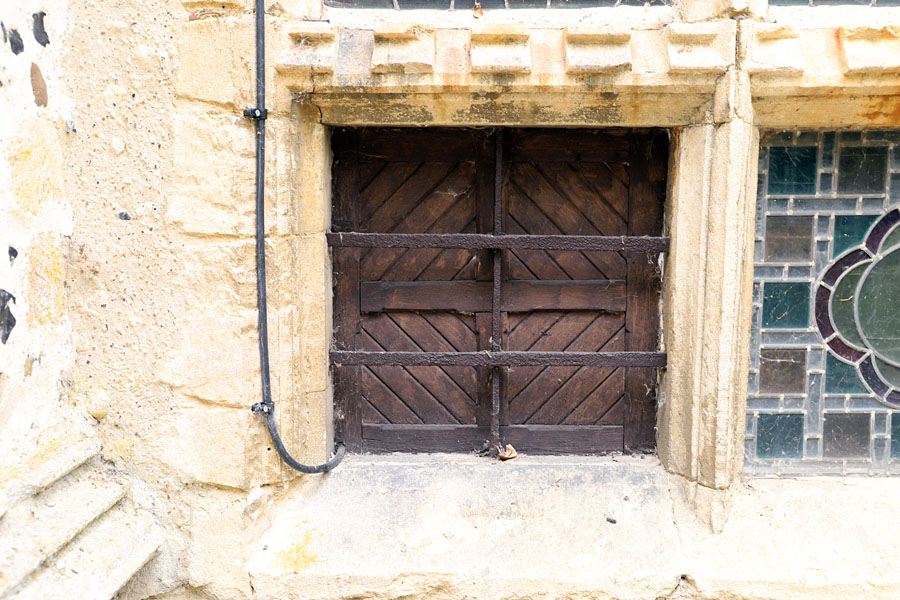

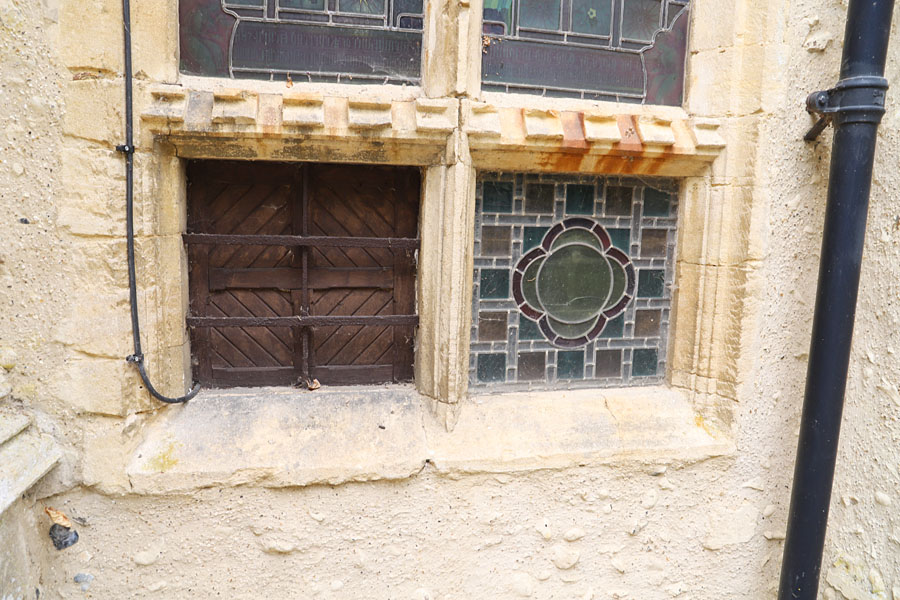

St Andrew's, Barningham Norfolk.
South low side window with bars and wooden shutter in situ.

St Andrew's, Barningham Norfolk.
South low side window with bars and wooden shutter in situ.

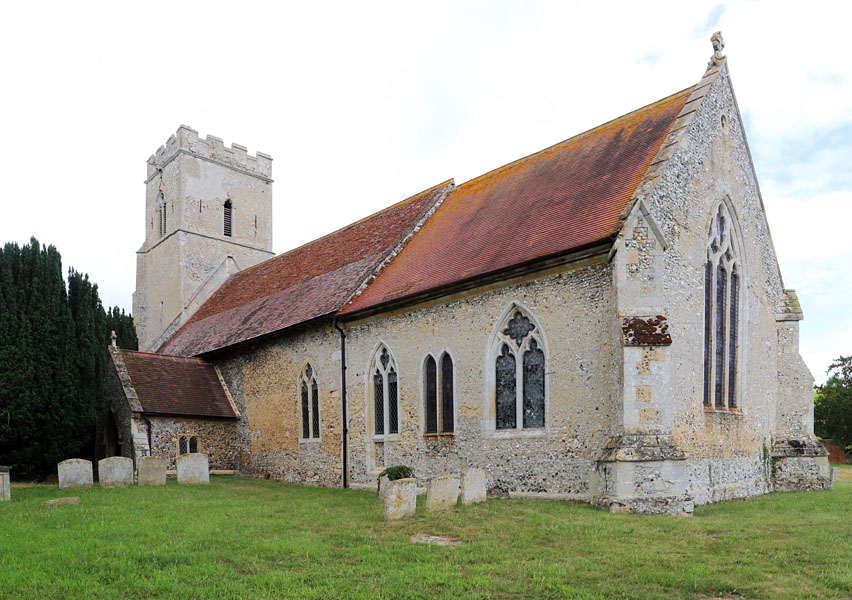

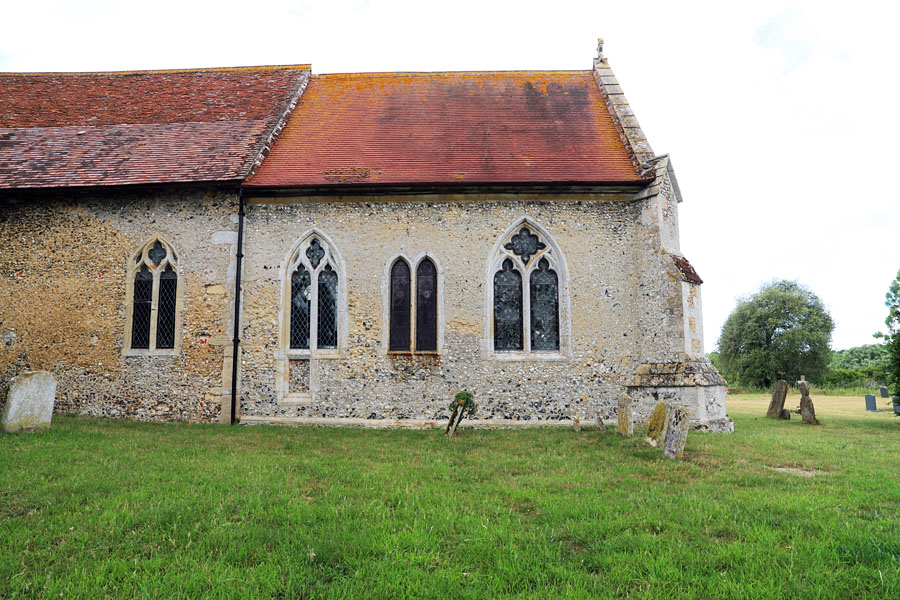

St Peter's, Fakenham Magna, Norfolk.

South chancel general view.

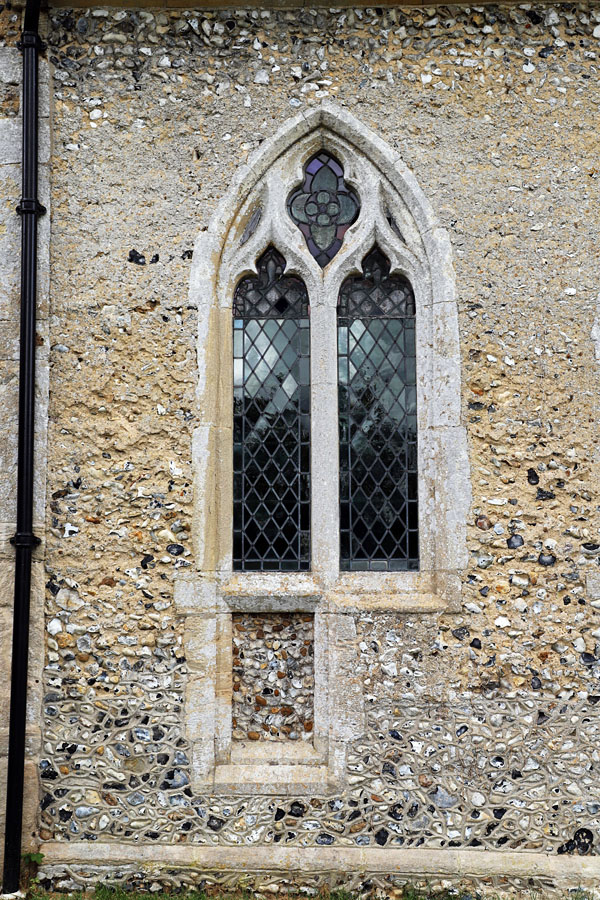

St Peter's, Fakenham Magna, Norfolk.

South low side window detail.


St Mary Magdalene, Wardington, Oxfordshire.

Bell cote on the east gable of the nave with oculus for the passage of the bell rope. Late c13.

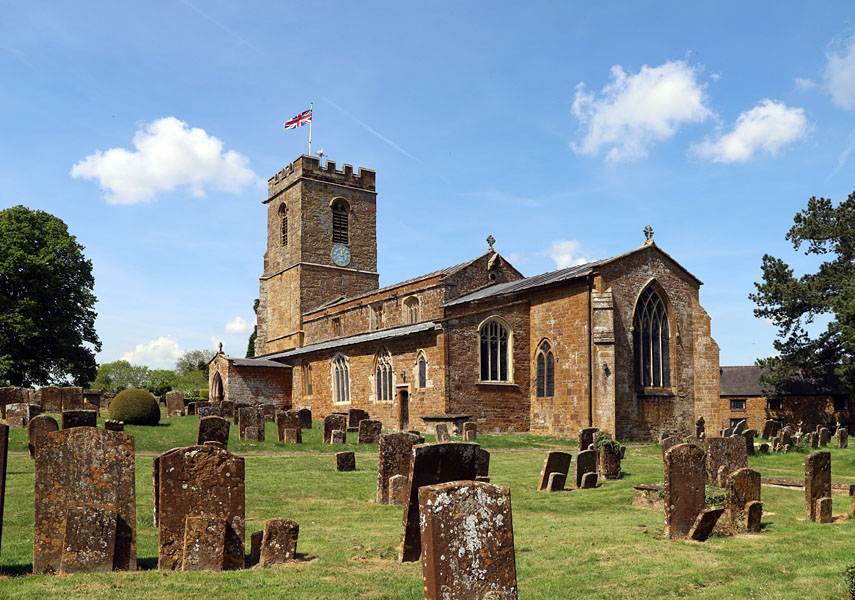

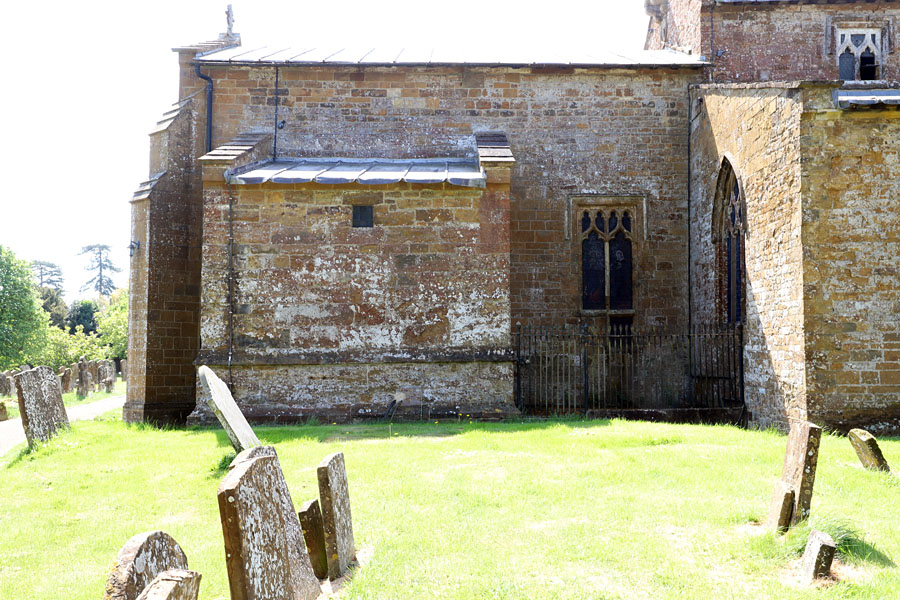

St Mary Magdalene, Wardington, Oxfordshire.
General view of the north side of chancel.

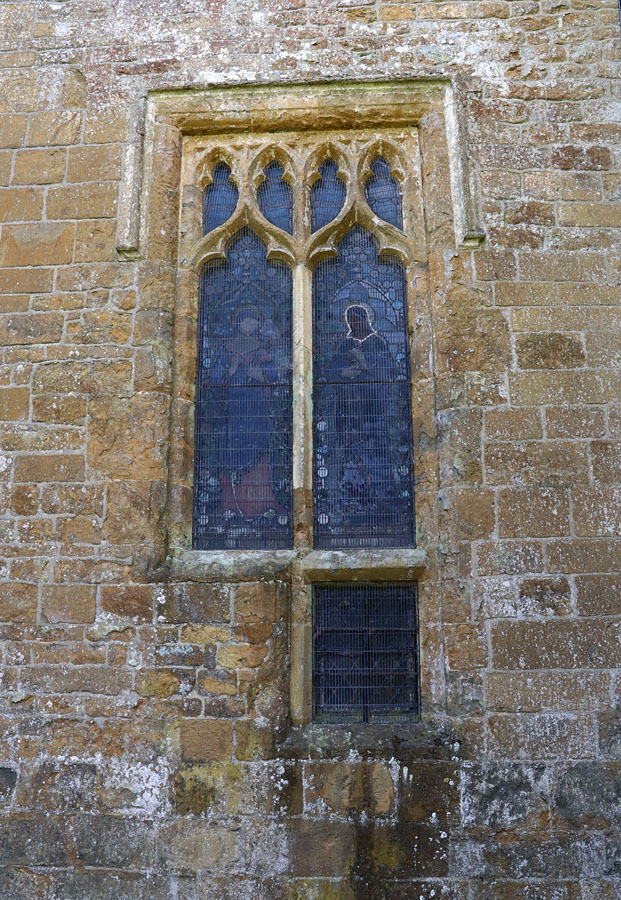

St Mary Magdalene, Wardington, Oxfordshire.
Later c14 Perp window on north side of chancel.

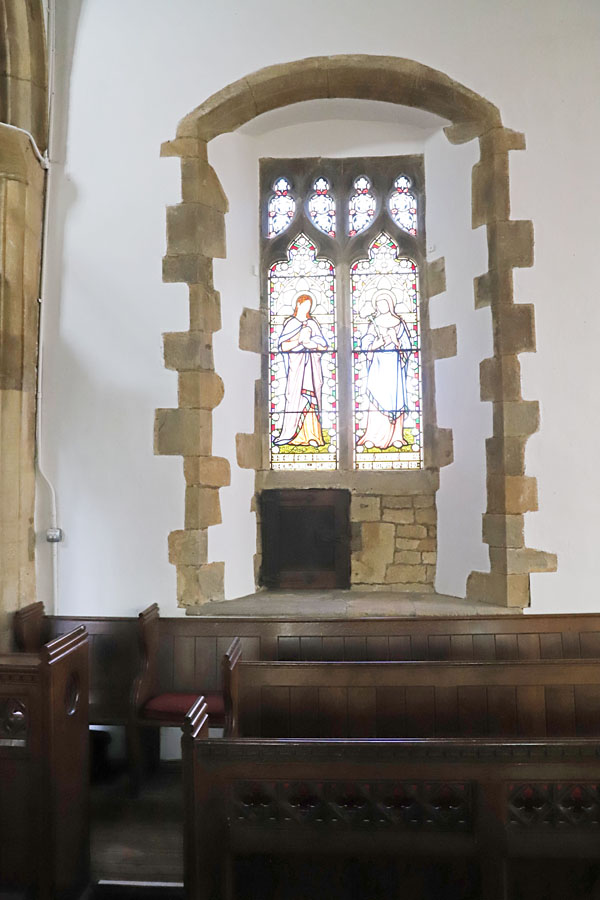

St Mary Magdalene, Wardington, Oxfordshire.
North low side window; internal view.

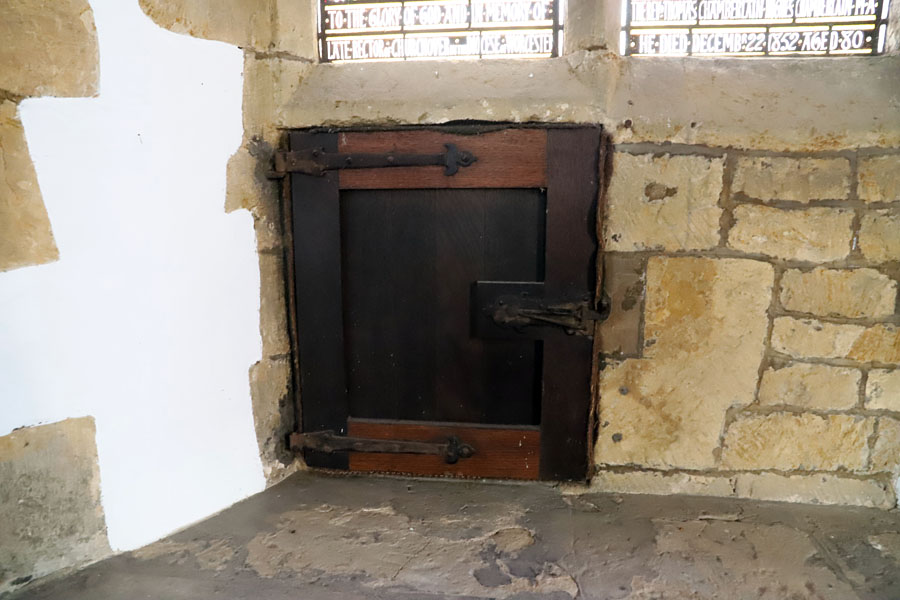

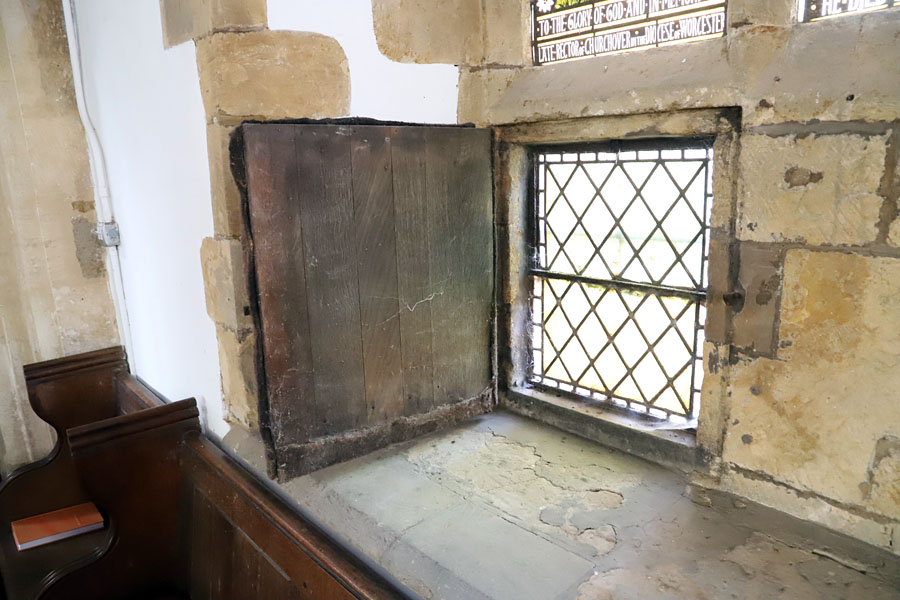

St Mary Magdalene, Wardington, Oxfordshire.
North low side window; detailed view of working wooden shutter.

St Mary Magdalene, Wardington, Oxfordshire.
North low side window; detailed view of working wooden shutter.

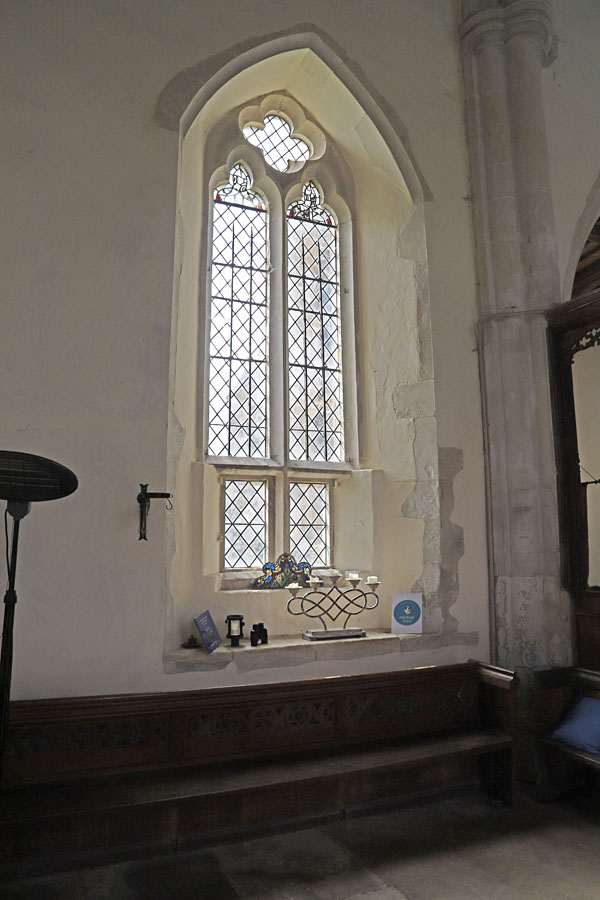

All Saints Church, Gazeley, Suffolk.

This photo of the south side window shows how the original internal splay has been lowered, but retaining a lip, or shoulder on both sides which would have supported the jams and sill of the original window while the opening was created. Note the rebate for shutters and hinge brackets on both sides (the lower one on the western light is missing).

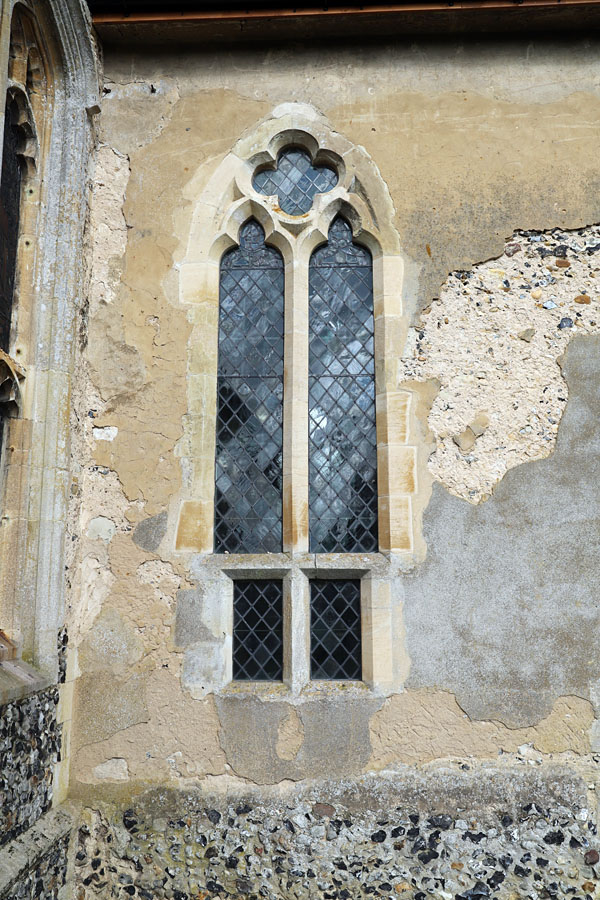

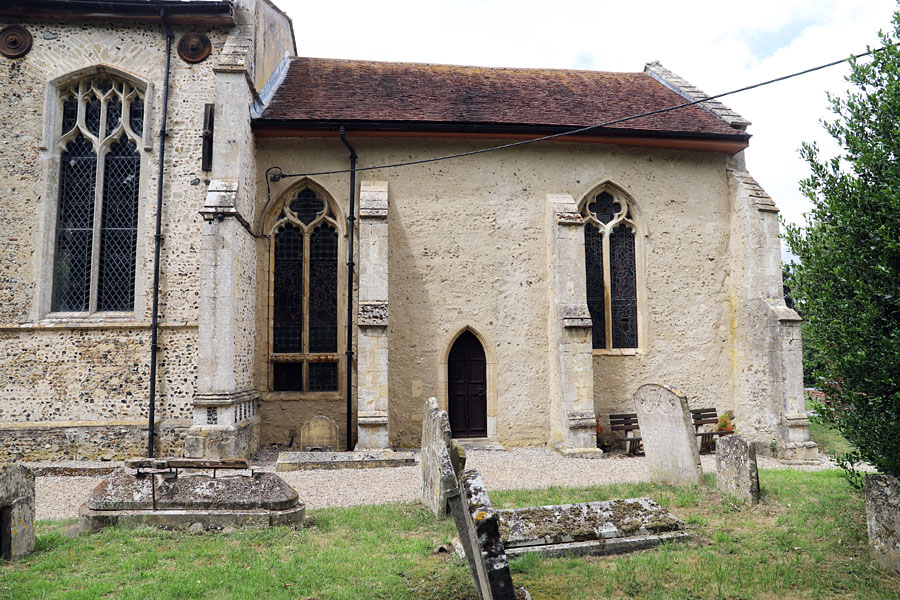

All Saints Church, Gazeley, Suffolk.
External view, south side.

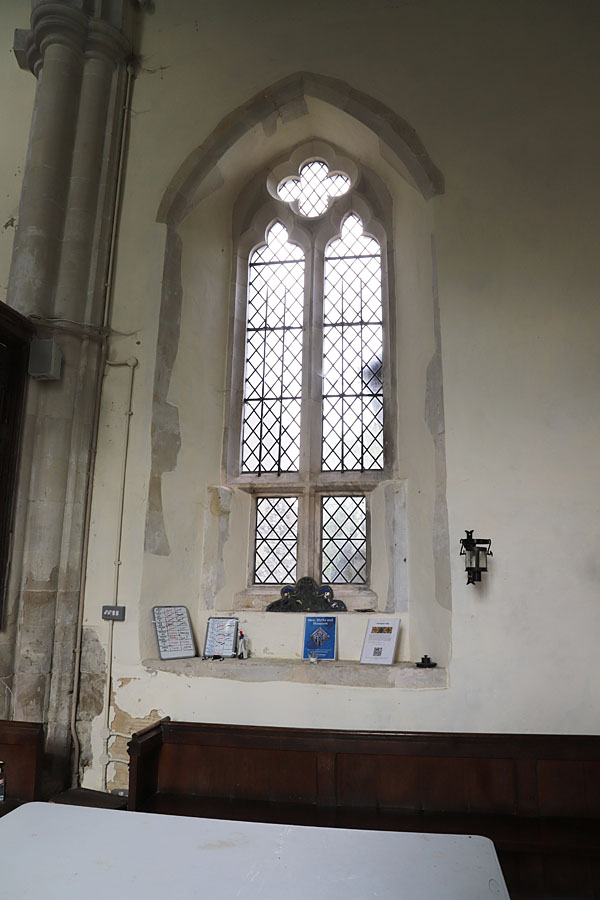

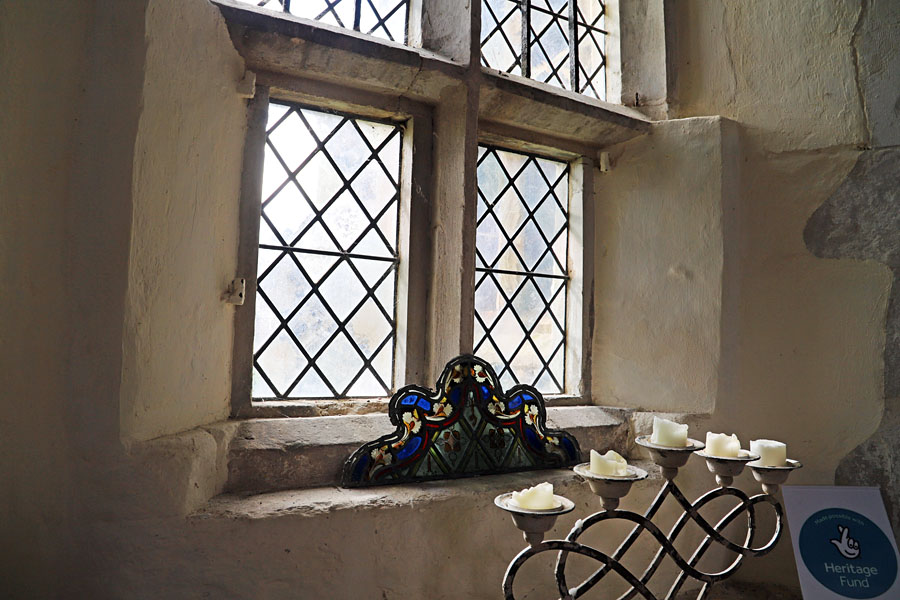

All Saints Church, Gazeley, Suffolk.
Internal view, south side. Detail.

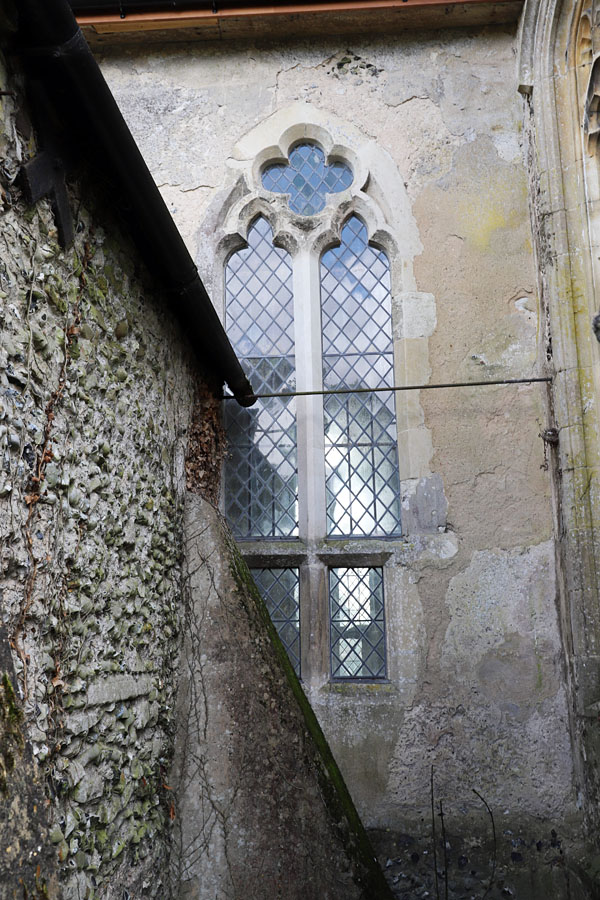

All Saints Church, Gazeley, Suffolk.
External view, north side. The extension is modern.

All Saints Church, Gazeley, Suffolk.
Internal view, north side.
